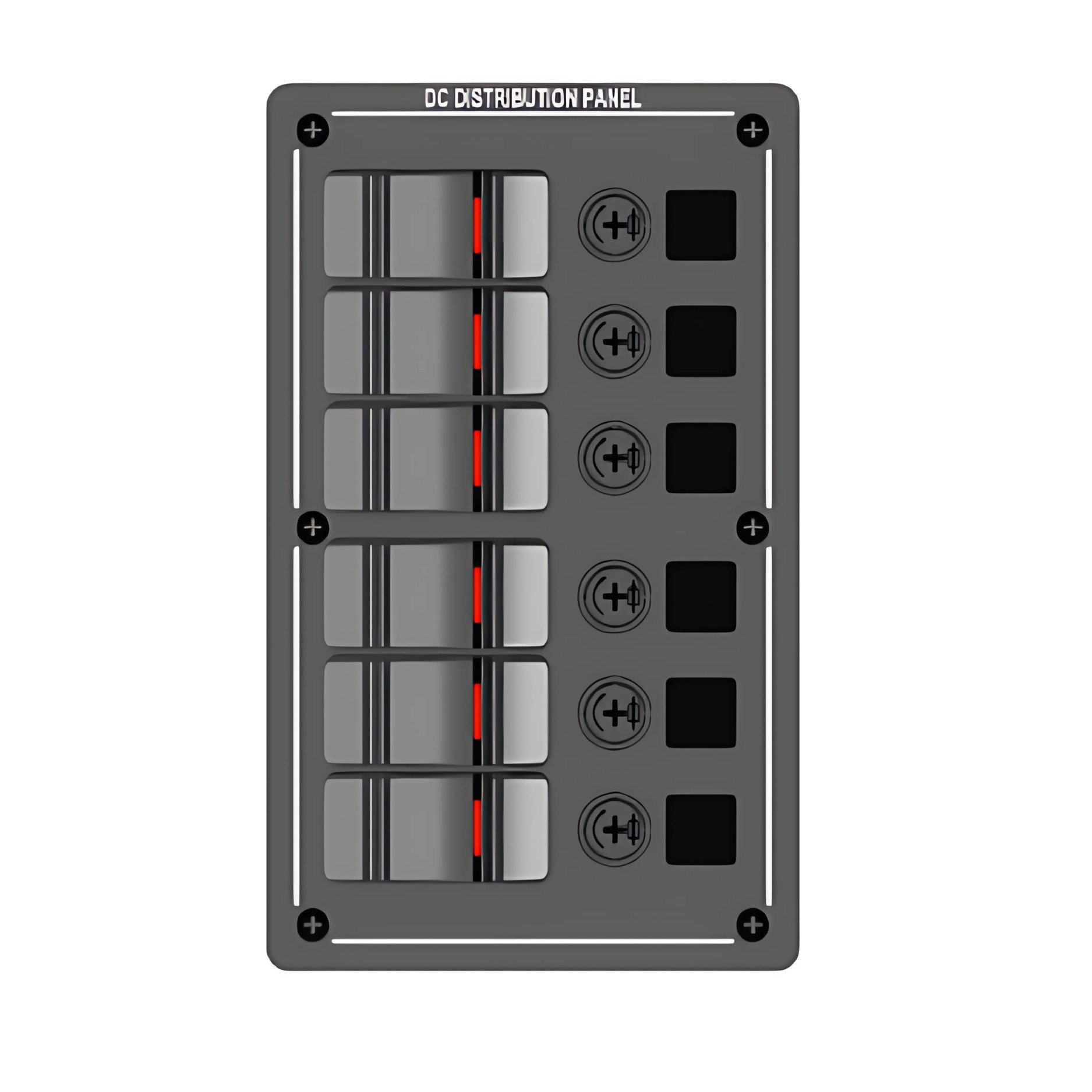

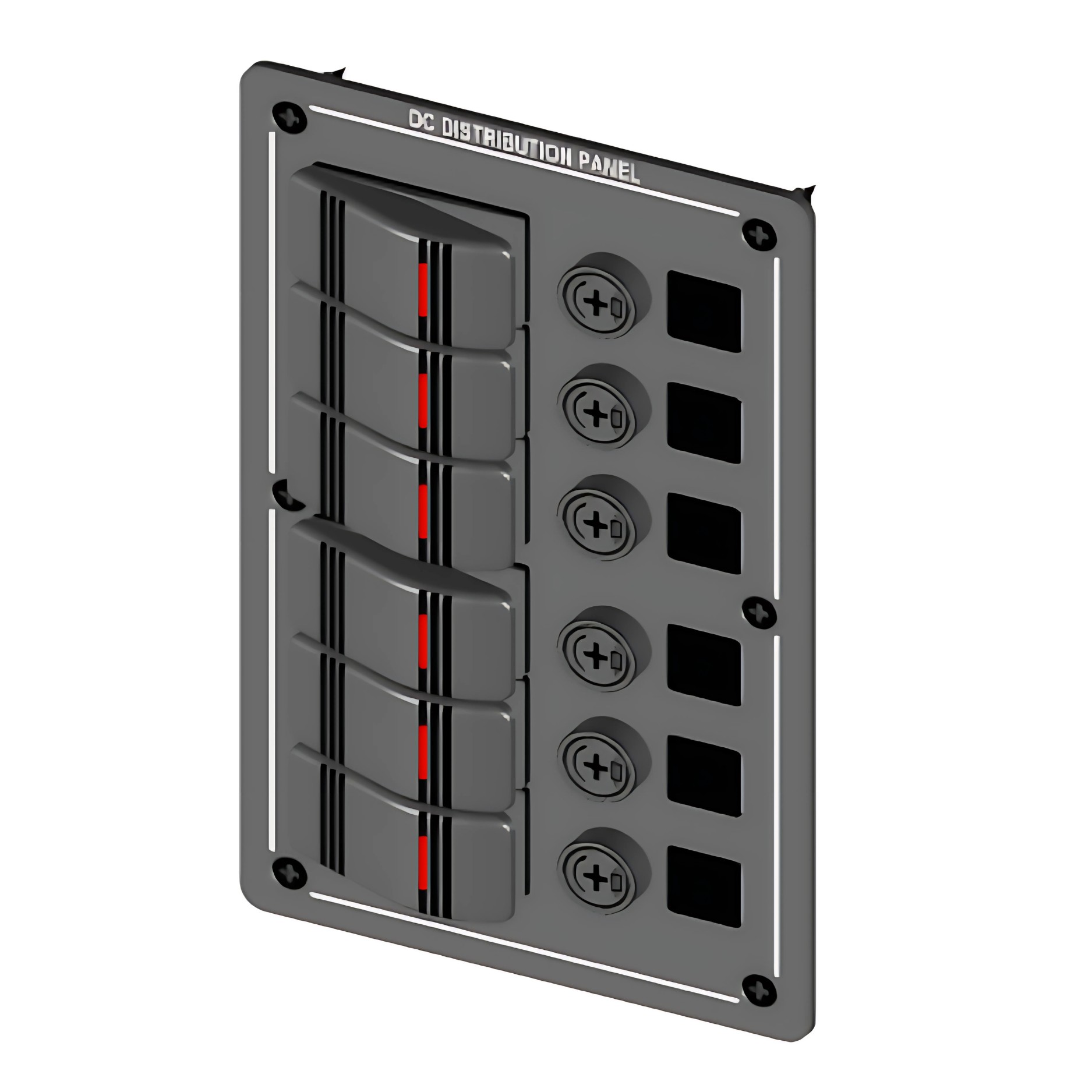

12V / 24V Switch Panel with 6 Gang illuminated rocker switches.
2mm Heavy Duty Aluminium panel construction with a black coated finish.
Specification:
- Switch Rating: 12V 20A, 24V 10A DC
- Panel Rating: Maximum Cumulative Amp: 45A
- Rocker Type Switch: (SPST/ON-OFF) × 6
- Fuse Holders: 3 x 5Amp, 2 x 10Amp, 1 x 15Amp
- Electrical wiring: UL/1015
- Size of Panel: 190 mm x 110 mm
- Certification：CE, IP65
Accessories:
- Stainless Steel Screw × 6
- Nitrile Rubber Gasket × 1
- Inscription Sticker Labels × 45
- Instruction Wiring Diagram
